Pax A920

Available as a Free Terminal Placement through Payarc.

Features:

  • Android-based touchscreen
  • Integrated camera
  • High speed thermal printer
  • High capacity battery

Specifications

ProcessorCortex A7 + ARM
Memory8GB eMMC Flash + 1GB DDR RAM | Optional: 16GB eMMC Flash + 2GB DDR RAM
Extended microSD Card Slot Up to 32GB
Display5” IPS WXGA 720 x 1280 Pixels
Multi-Point Capacitive HD Touch Screen
Connectivity4G + Bluetooth® 4.2 + Wi-Fi® 2.4GHz
Card ReadersChip & PIN | NFC Contactless | Magnetic Stripe
SecurityPCI PTS 5.x SRED | EMV L1 & L2 | EMV contactless L1 | Visa payWave | Mastercard contactless
UPI qUICS | American Expresspay | Discover D-PAS | JCB J/Speedy | Interac Flash |
Mastercard TQM | Common.SECC UKCC | CE | RoHs | ATEX | Anatel | WPC | BIS
Size175.7 x 78 x 57mm, 458g (including battery)
Categories

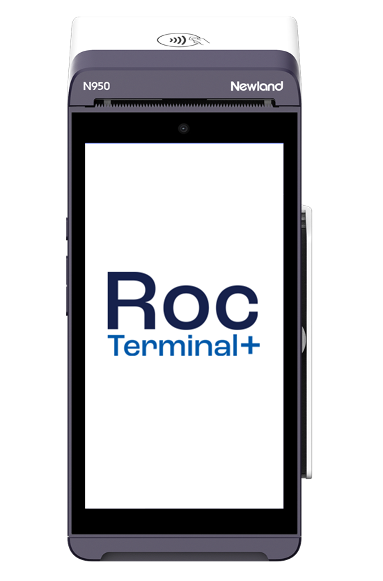

Roc Terminal+ N950

Paired with Roc Terminal+, this Android device enables fast checkouts and optimized efficiency in a handheld form. A full point-of-sale system in a small package. More payments, more power, less clutter.

Features:

  • 5.99″ touchscreen
  • Full payment support
  • Wi-Fi and 4G connectivity
  • Light inventory management and real-time reporting

ProcessorCortex Quad-core A53, 2.0GHz
Memory2GB, Micro SD Socket- up to 256 GB
Display5.99-inch TFT full color LCD display, resolution of 1440 x 720, with adjustable backlight, capacitive multi-touch screen, support electronic signature
Connectivity4G / 3G | Wi-Fi (802.11a/b/g/n/ac) 2.4G&5G | Bluetooth 2.1/5.0
Card ReadersTriple track, bi-directional, conforming to ISO 7810/7811/7813

EMV L1/L2, conforming to ISO 7816, 1.8V/3V/ 5V,synchronous & asynchronous, T=0 & T=1

EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica
SecurityPCI PTS 6.x, EMV L1/L2, EMV Contactless L1,PayPass,payWave, American ExpressPay, Discover D-PAS,UnionPay QuickPass, JCB, TQM, CE, RoHS, MCCS, CB, Interac, ATEX
Size201(L) x 79.8(W) x 62(H)
