Dejavoo QD2 Android Terminal

Enjoy the seamless and secure mobility of an Android terminal. (TSYS Platform ONLY)

Features:

EMV and NFC Contactless built-in
WiFi, Bluetooth 4G
Large touch screen
Surcharge ability
Remote Key Injection

Specifications

Processor	Quad-Core @ 1.1GHz
Memory	1GB RAM, 8GB Flash
Display	5.5” color LCD with touch panel (720 x 1280)
Connectivity	GSM, WCDMA, FDD-LTE, TDD-LTE, WiFi, BT4.0, E-SIM
Printer	2.25” x 80’, 4” per second
Card Readers	ISO 14443 Type A & B, Mifare, Contactless EMV Level 1, MasterCard Paypass, Visa PayWave, ExpressPay and D-Pass (in progress)
Security	PCI PTS 5.0
Size (L x W x D)	: 127 x 70 x 21mm

Tags dejavoo, equipment, wireless

Dejavoo QD3

Introducing the new Dejavoo mPOS Android-based wireless terminal. *Unit requires Denovo Back Office Software*

Features:

EMV and NFC Contactless built-in
4G, WiFi, Bluetooth
4” touch screen
Pocket size

Specifications

Processor	Qualcomm + secure chip
Memory	512MB RAM, 4GB Flash
Display	4” color LCD with touch panel (800 x 480)
Connectivity	GSM, WCDMA, FDD-LTE, TDD-LTE, WiFi, BT4.0, E-SIM
Security	PCI PTS 5.0
Size (L x W x D)	127 x 70 x 21mm

Tags dejavoo, equipment, wireless

Dejavoo QD4

Enjoy the seamless and secure mobility of an Android terminal.

Features:

EMV and NFC Contactless built-in
Ethernet, WiFi, USB
Large touch screen
Surcharge ability
Remote Key Injection

Specifications

Processor	Quad-Core @ 1.1GHz
Memory	1GB RAM, 8GB Flash
Display	5.5” color LCD with touch panel (720 x 1280)
Connectivity	Ethernet – USB to Ethernet, WiFi (no dial)
Printer	2.25” x 80’, 4” per second
Card Readers	ISO 14443 Type A & B, Mifare, Contactless EMV Level 1, MasterCard Paypass, Visa PayWave, ExpressPay and D-Pass (in progress)
Security	PCI PTS 5.0
Size (L x W x D)	: 127 x 70 x 21mm

Tags dejavoo, equipment

The Z8 and Z11 countertop payment terminals provide an easy to use EMV payment experience for every business owner.
With easy access to frequently used options in the “Favorites” Menu, and a simple “Call Me” button to request a support representative callback.

Features:

EMV and NFC Contactless built-in
Dual-comm capability (IP & WiFi)
Z8: 2.4’’ Color LCD with backlight Z11: 3.5” TFT LCD with PCT touch screen
Display logo on the screen and print logo on the transaction receipts
Remote Key Injection
EMV 4.x L1 and L2 certified
Apple Pay, Samsung Pay, Google Wallet, Visa payWave, MasterCard PayPass

Specifications

Processor	32 bits 400MHz Secure Microprocessor
Memory	Flash / DDR RAM: 128MB / 64MB Micro SD Socket: Optional
Display	Z8: 2.4” Color TFT-LCD – 320 x 240 pixels Z11: 3.5” Color LCD – 320 x 480 pixels
Connectivity	Ethernet and WiFi
Printer	2.25” x 80’, 4” per second
Card Readers	Magnetic Strip: ISO 7810, 7811 & 7813 Triple Track Bi-Directional Contact Card: User Card: ISO 7816 ID-1 1.8V / 3V / 5V T=0, T=1 SAM Card (up to 4): 2 for Z8, 2 for Z11 Contactless (standard): ISO 14443 Type A, B, ISO 18092 NFC and Milfare® and SONY® Felica ~ Working frequency 13.56MHz
Security	Security & Payment: PCI PTS, EMV L1 L2, TQM, PBOC L1 L2 Visa PayWave, MasterCard PayPass, American Express, & JCB J/ Speedy Safety, EMC: CE, FCC, BSMI, RoHS
Size (L x W x D)	7.5” x 3” x 3” (both Z8 & Z11)

Tags dejavoo, equipment, free placement, terminal

Dejavoo Z9

All Dejavoo Z9 Mobile Payment Devices are EMV Chip Card Ready and Certified. All come standard with the following features: NFC Contactless Readers for pay, Google Wallet, Samsung Pay, etc., touch screen for signature on display and PCI compliant Internal PIN Pads with each Z9 Model.

Features:

EMV and NFC Contactless built-in
Dual-comm capability (4G & WiFi)
3.5” color TFT-LCD Touchscreen
Display logo on the screen and print logo on the transaction receipts
Remote Key Injection
Apple Pay, Samsung Pay, Google Wallet, Visa payWave, MasterCard PayPass
15 Key Keypad and Virtual Keyboard

Specifications

Processor	32 bits 400MHz Secure Microprocessor running powerful Linux based OS
Memory	Flash / DDR RAM: 256MB / 128MB
Display	3.5” color TFT-LCD – with capacitive touch panel – 320 x 480 pixels
Connectivity	4G and WiFi
Card Readers	Magnetic Stripe: ISO 7810, 7811 & 7813 Triple Track Bi-Directional Contact Card: User Card: ISO 7816 ID-1 1.8V / 3V / 5V T=0, T=1 SAM Card (up to 4): 2 Contactless (optional): ISO 14443 Type A, B, ISO 18092 NFC and Mifare® and SONY® Felica ~ Working frequency 13.56MHz
Security	PCI PTS 5.X, EMV L1/L2, Visa PayWave, MasterCard PayPass, American ExpressPay, D-PAS, Interac Flash, J-Speedy, FeliCa, UnionPay UICS, TQM, PBOC L1/L2
Size (L x W x H)	6.7″ (L) x 3.1″ (W) x 2.3″ (H)

Tags dejavoo, equipment, wireless

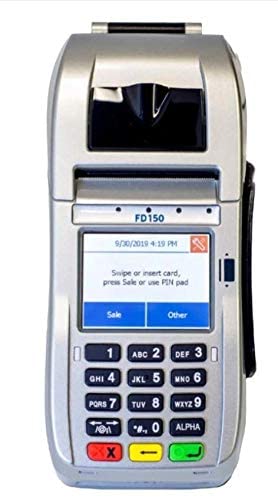

First Data FD150

First Data’s FD150 Terminal is quick and easy to use.

When it comes to processing payments, every merchant needs reliable,
high-performance equipment for fast transactions that keep the line moving. The all-in-one FD150 payment terminal combines industry-leading security with EMV, mag stripe and contactless (NFC) acceptance to fulfill your payments needs.

Features:

EMV and NFC Capable
Upgraded to PCI 5.0
Quick generation of receipts
Intuitive touch-screen display for ease of use
SSL encryption
Quick and hassle-free drop-in paper-loading system

Specifications

Processor	Cortex A5 500MHZ
Printer	Thermal Printer (18lps), Paper Roll Diameter: 48mm
Display	Touch-screen with 320×240 color display
Memory	128 MB RAM
Connectivity	Dial up modem, Ethernet, 2.4 GHz, Wi-Fi
Security	TransArmor Solution

#special approval needed for free placement

Tags equipment

PAX A80

PAX A80, the most cost-effective in the A-series, is a powerful, game-changing countertop device that can also be used as an indoor portable device. Always running at peak performance, full connectivity means the A80 is a reliable workhorse that will process payments safely and fast, even during the busiest hours.

Features

PAXBiz® powered by Android™
4″ HD Touchscreen Display
3.5 in/sec high-speed printer
PCI PTS 5.x

Specifications

Processor	Application CPU: Quad-core Cortex-A53, 1.2GHz Security CPU: Cortex M3
Memory	1GB DDR + 8GB eMMC \| 1 x Micro SD Card Slot
Display	4″ Color HD Touchscreen
Connectivity	Wi-Fi \| Bluetooth® wireless technology \| Ethernet\|Dial
Printer	3.5” per second high-speed printer
Card Reader	Magnetic Card Reader \| Smart Card Reader \| Contactless
Security	PCI PTS 5.x SRED, EMV® L1 & L2, Visa payWave, Mastercard PayPass, American Express expresspay, Discover D-PAS, Interac Flash, JCB J/ Speedy UnionPay qUICS
Size (L x W x D)	7.12″ x 3.3 x 3.19

Tags equipment, FLATPAY, pax

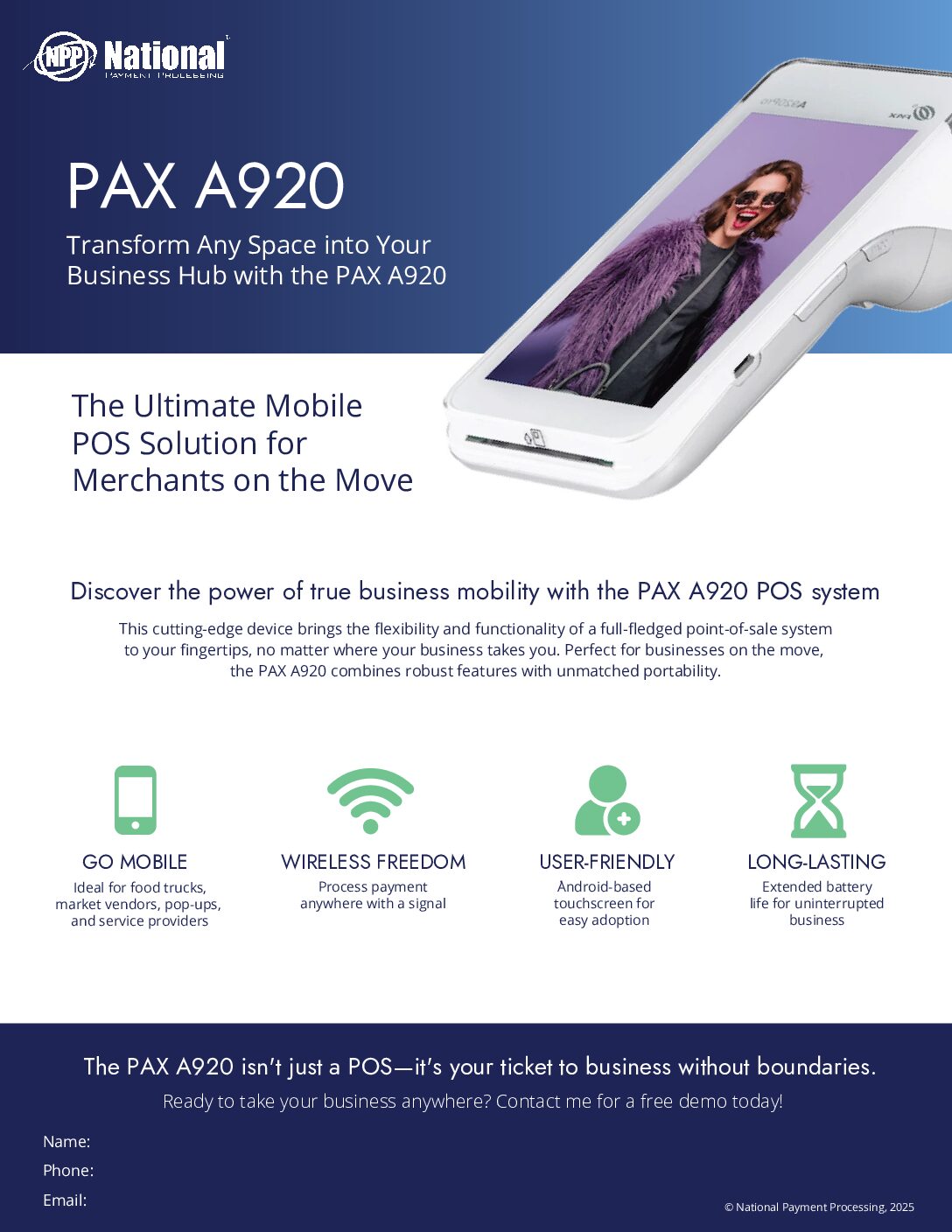

Pax A920

Download here

Dimensions: 8.5 x 11 in

File Size: 738 KB

File Type: PDF

Tags equipment, flyers

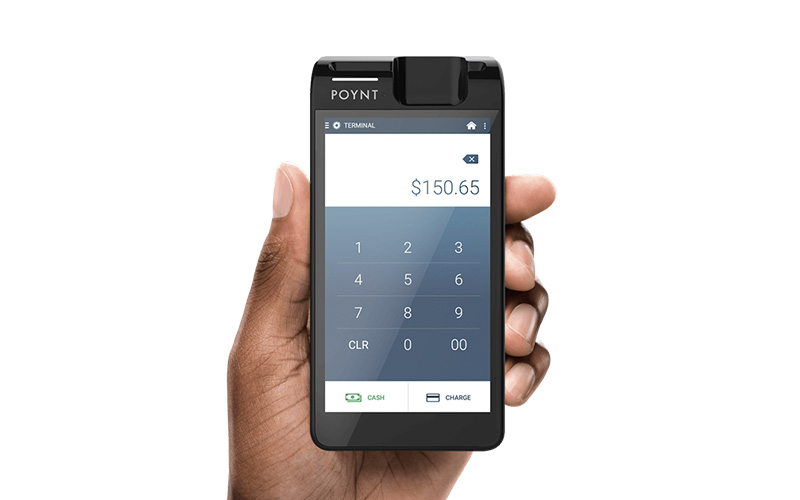

Poynt 5 Terminal

All the power of Poynt Smart Terminal, yet fits in your pocket – Poynt 5 lets your customers pay you when and where you’d like.

Features

Fast Transactions via 4G and WiFi
Multiple Payment Options
EMV and NFC Contactless built-in
Access to Poynt HQ Dashboard
PIN-on-glass

Specifications

Processor	Quad-core ARM Cortex A53
Memory	1GB DDR RAM / 8GB Flash
Display	5.0″ secure touchscreen display – 720(w) x 1280(h) pixels
Connectivity	WiFi: 802.11 a/b/g/n a/b/g/n Bluetooth 4.2 *Optional 4G Modem
Card Readers	Hybrid MSR/ Chip Reader Magnetic stripe reader: Triple track (tracks 1, 2, 3), high coercivity, bi-directional Chip reader: ISO 7816, 1.8V, 3V, 5V; synchronous and asynchronous cards; EMV Level 1 and 2 Type approved
Security	PCI PTS PED and SRED 4.x, End to end encryption Support TLS 1.2
Size (L x W x D)	76.3 mm x 154.0 mm x 25.4 mm

Tags equipment, poynt

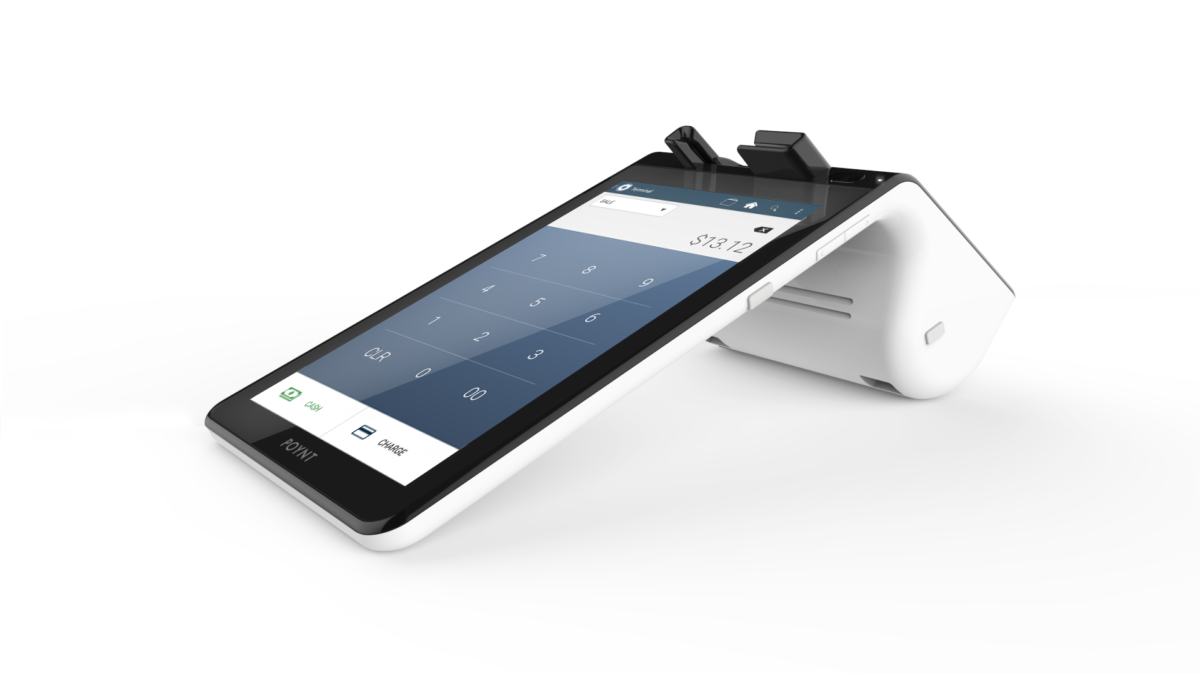

Poynt Smart Terminal

The Poynt Smart Terminal is here! Your business deserves modern technology. The Poynt Smart Terminal is an all-in-one smart device you’ll actually want to have on your counter.

Features

Fast Transactions via 4G, Ethernet, and WiFi
Multiple Payment Options
EMV and NFC Contactless built-in
Access to Poynt HQ Dashboard
Dual screen terminal

Specifications

Processor	Quad-core ARM Cortex A53
Memory	1GB DDR RAM / 8GB Flash
Display	7.0″ touchscreen display – 800(w) x 1280(h) pixels 4.3″ secure touchscreen display – 800(w) x 480(h) pixels
Connectivity	4GLTE/WiFi/Ethernet
Printer	2″ thermal printer. Accommodates standard roll paper of 58mm (2.25 in) width x 25mm (1.0 in) diameter
Card Readers	Hybrid MSR/Chip Reader, Magnetic stripe reader: Triple track (tracks 1, 2, 3), high coercivity, bi-directional Chip reader: ISO 7816, 1.8V, 3V, 5V; synchronous and asynchronous cards; EMV Level 1 and 2 Type approved
Security	PCI PTS PED and SRED 4.x, End to end encryption Support TLS 1.2
Size (L x W x D)	120.7 mm x 250.5 mm x 91.4 mm

Tags equipment, poynt

QuickSale ® PayPoint

Compact Android-based POS Terminal

PayPoint Plus for Android is a new all-in-one mPOS solution that brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint Plus provides everything a merchant needs.

Features

13.3 Inch Tilt able Touch Screen
Customer Facing LED Display
Integrated 2.25″ high speed thermal printer with auto cutter
Bluetooth, WiFi and Ethernet connection
Integrated 1D barcode scanner
Includes 1 – Miura M010 – EMV Chip Card reared, MSR Swiper, Contactless PIN Pad and charging stand
Integrated Cash Drawer

Specifications

Processor	Qualcomm Snapdragon 2.0GHz Octa-Core
Memory	3GB
Display	13.3” diagonal, Active matrix TFT LCD (LED) Customer Display 2×16 character display*
Connectivity	802.11b/g/n/ac + Bluetooth 4.1 + 1 x LAN (Gigabit)
Card Reader	Miura M010 – EMV Chip Card reared, M

Tags chargeanywhere, equipment, pos

QuickSale® PayPoint Plus

Compact Android-based POS Terminal

PayPoint Plus for Android is a new all-in-one mPOS solution that brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint Plus provides everything a merchant needs.

Features

15.6 Inch Tilt able Touch Screen
Customer Facing LED Display
Integrated 3″ high speed thermal printer with auto cutter
Bluetooth, WiFi and Ethernet connection
Integrated 2D barcode scanner
Includes 1 – Miura M010 – EMV Chip Card reared, MSR Swiper, Contactless PIN Pad and charging stand
Integrated Cash Drawer

Specifications

Processor	Qualcomm Snapdragon 2.0GHz Octa-Core
Memory	3GB
Display	15.6” diagonal, Active matrix TFT LCD (LED) Customer Display 2×16 character display*
Connectivity	802.11b/g/n/ac + Bluetooth 4.1 + 1 x LAN (Gigabit)
Card Reader	Miura M010 – EMV Chip Card reared, MSR Swiper, Contactless PIN Pad

Tags chargeanywhere, equipment, pos

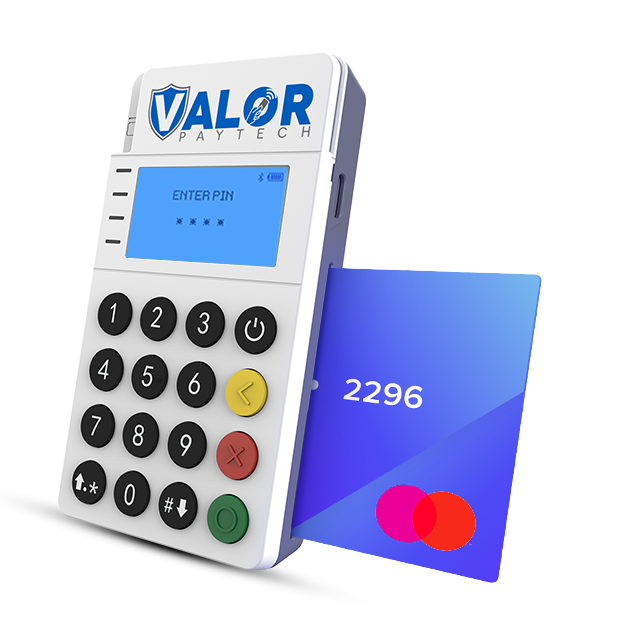

Valor RCKT

The RCKT EMV mPOS READER from ValorPaytech

Features:

Swipe, Dip & Tap capabilities
Credit, Signature & PIN Debit, plus EBT Mobile Acceptance
Cash Discount, Dual Pricing, & Surcharging options
Use the ValorPay App on iOS and Android Smartphones
10 Alphanumeric Keys, 5 Function Keys, 1 Power Button

Specifications

Processor	32-bit high performance secure processor
Memory	512KB SRAM, 512KB+ 4 MB FLASH
Connection	Bluetooth 4.2
Peripheral Ports	1 x TYPE-C for charging and communication
Dimensions	102.7mm(L) x 55.8mm(W) x 16.5mm(H)

Tags equipment, valor

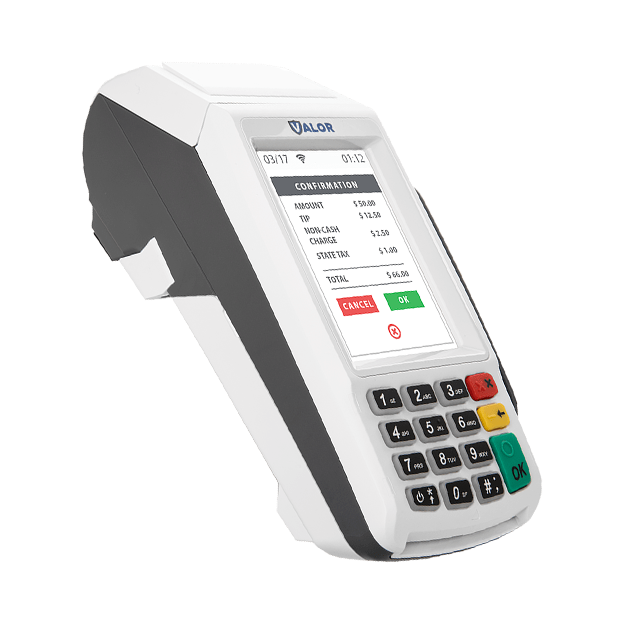

Valor VL100

The Ultimate Countertop Solution.

Features:

Countertop POS
Ethernet, Wi-Fi Connectivity
Large Scale Touch Screen Display
Signature Capture

Specifications

Processor	32-bit Secure Microprocessor
Memory	128 MB/64MB (Up to 256MB/128MB)
Display	3.5” Color TFT LCD \| 320 x 480 Pixels
Connectivity	Ethernet \| RS232 * 2 \| USB * 2, WiFi
Printer	57 mm x 50 mm, 100mm/sec
Card Readers	ISO 7810, 7811, 7813 Triple Track, Bi-Directional, ISO 7816 ID-1 1.8V/3V/5V T=0, T=1, ISO 14443 Type A, B \| ISO 18092 NFC Mifare & Sony FeliCa Working Frequency 13.56 MHz
Security	PCI PTS 4.x \| EMV L1/L2 \| payWave \| PayPass \| ExperssPay \| D-PAS \| Interac Flash \| J-Speedy \| FeliCa \| UnionPay UICS \| TQM \| PBOC L1/L2
Size (L x W x D)	190MM(L) x 78MM(W) x 78MM(H)

Tags equipment, valor
